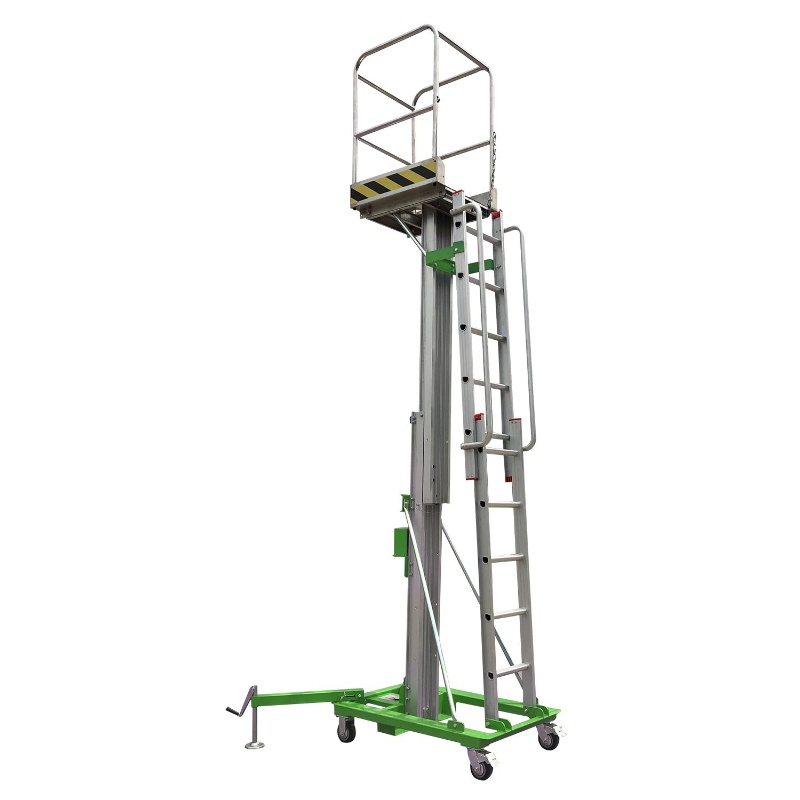

The Manual Winch Elevating Work Platform is built tough to handle the day-to-day demands of industrial and commercial use. Getting those overhead jobs done requires a lift that is dependable. Designed to be handled and operated by one worker, it rolls easily from job to job and rolls easily through a standard doorway.
Specification
Model | SP32 | SP46 |
Platform Height | 3200mm | 4600mm |
Platform Size | 550*600mm | 550*600mm |
Load capacity | 125kg | 125kg |
Stowed Length | 1200mm | 1300mm |
Stowed Width | 750mm | 800mm |
Stowed Height | 1980mm | 2070mm |
Ground Clearance | 70mm | 70mm |
Machine Weight | 145kg | 190kg |
Operation Mode | Manual | Manual |
Move Mode | Push by manpower | Push by manpower |
Highlight
Exclusive built manual hand winch features heavy duty brake
Large 550*600mm skid-resistant platform with toe boards and tubular guardrails
Smooth rolling 6 in casters for easy movement
Compact design allows easy movement of the unit through standard doorways
