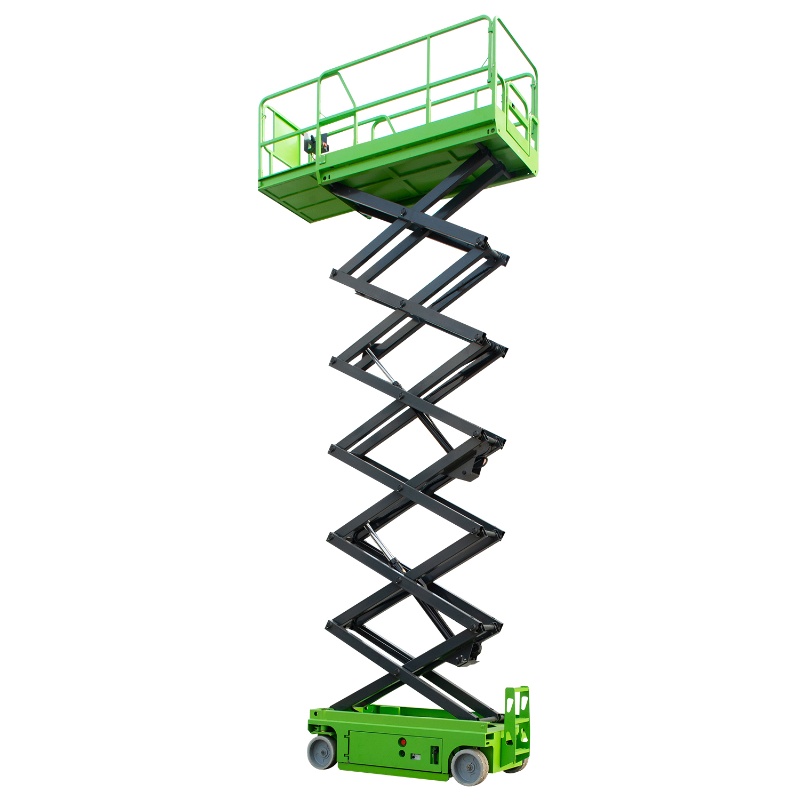

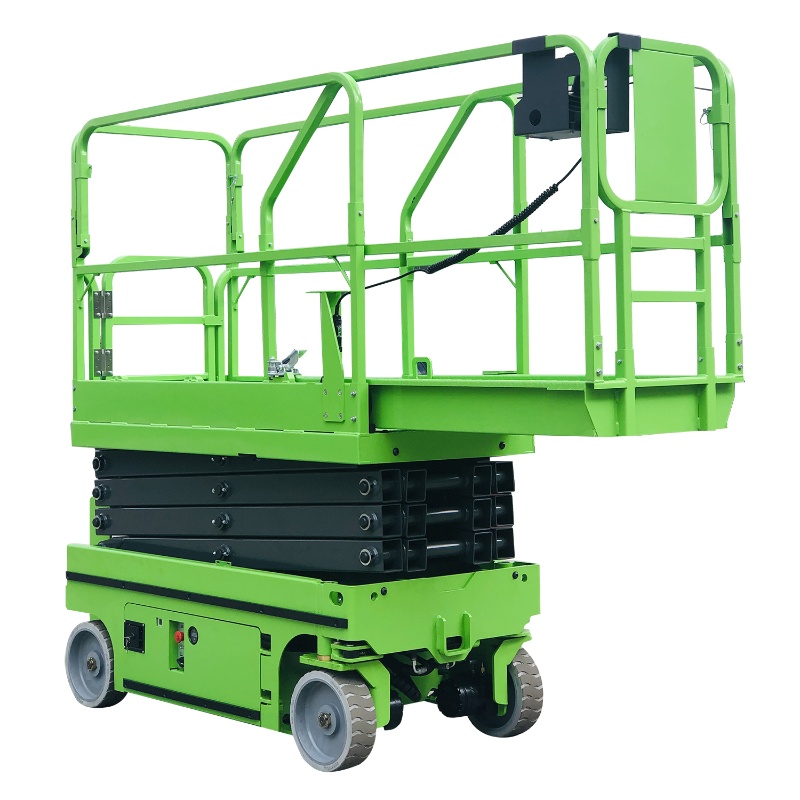

CE Certified 5.8m Self Propelled Scissor Lift
1. Self propelled scissor lift ,with automatic walking function, can be in different work condition, do not need external power supply, do not need artificial traction.
2. Mobile flexible, convenient operation, lift freely, only one people can finish forward, backward, steering, fast and slow walk ,easily moved, spacious working platforms, high working efficiency.
Specification
| Model | MX580S | MX600SN | MX800S | MX1000S |
| Platform Capacity | 230kg | 230kg | 320kg | 320kg |
| Extension Capacity | 113kg | 113kg | 113kg | 113kg |
| Working Height Max | 7.80m | 7.80m | 9.80m | 11.80m |
| Platform Height Max | 5.80m | 5.80m | 7.80m | 9.80m |
| Overall Length | 1.83m | 2.45m | 2.45m | 2.45m |
| Overall Width | 0.76m | 0.85m | 1.18m | 1.18m |
| Overall Height（Rails Up） | 2.18m | 2.24m | 2.36m | 2.48m |
| Overall Height（Rails Down） | 1.80m | 1.64m | 1.76m | 1.88m |
| Platform Size（L*W） | 1.68*0.74m | 2.30*0.81m | 2.30*1.15m | 2.30*1.15m |
| Platform Extension Size | 0.90m | 0.90m | 0.90m | 0.90m |
| Ground Clearance（Stowed） | 0.083m | 0.10m | 0.10m | 0.10m |
| Ground Clearance（Raised） | 0.016m | 0.02m | 0.02m | 0.02m |
| Wheelbase | 1.36m | 1.92m | 1.92m | 1.92m |
| Turning Radius（Inside） | 0 | 0 | 0 | 0 |
| Turning Radius（Outside） | 2.35m | 2.35m | 2.65m | 2.65m |
| Lift / Drive Motor | 24V/3.30kw | 24V/3.30kw | 24V/3.30kw | 24V/3.30kw |
| Travel Speed（Stowed） | 3.50km/h | 3.50km/h | 3.50km/h | 3.50km/h |
| Travel Speed（Raised） | 0.80km/h | 0.80km/h | 0.80km/h | 0.80km/h |
| Raise / Lower Time | 3-5m/min | 3-5m/min | 3-5m/min | 3-5m/min |
| Power Source | 4*6V/203AH | 4*6V/203AH | 4*6V/203AH | 4*6V/203AH |
| Charger | 24V/30A | 24V/30A | 24V/30A | 24V/30A |
| Gradeability | 25% | 25% | 25% | 25% |
| Maximum Working Slope | 1.5°/3° | 1.5°/3° | 1.5°/3° | 1.5°/3° |
| Tire Size | 305*100mm | 380*127mm | 380*127mm | 380*127mm |
| Weight | 1500kg | 2050kg | 2254kg | 2750kg |
| Model | MX1200S | MX1400S | MX1600S |
| Platform Capacity | 320kg | 227kg | 227kg |
| Extension Capacity | 113kg | 113kg | 113kg |
| Working Height Max | 13.80m | 15.80m | 17.80m |
| Platform Height Max | 11.80m | 13.80m | 15.80m |
| Overall Length | 2.45m | 2.87m | 3.14m |
| Overall Width | 1.18m | 1.37m | 1.53m |
| Overall Height（Rails Up） | 2.60m | 2.87m | 2.87m |
| Overall Height（Rails Down） | 2.00m | 2.30m | 2.30m |
| Platform Size（L*W） | 2.30*1.15m | 2.70*1.15m | 3.00*1.15m |
| Platform Extension Size | 0.90m | 0.90m | 0.90m |
| Ground Clearance（Stowed） | 0.10m | 0.10m | 0.10m |
| Ground Clearance（Raised） | 0.02m | 0.02m | 0.02m |
| Wheelbase | 1.92m | 2.26m | 2.26m |
| Turning Radius（Inside） | 0 | 0 | 0 |
| Turning Radius（Outside） | 2.65m | 3.13m | 3.5m |
| Lift / Drive Motor | 24V/3.30kw | 24V/4.50kw | 24V/4.50kw |
| Travel Speed（Stowed） | 3.50km/h | 3.50km/h | 3.50km/h |
| Travel Speed（Raised） | 0.80km/h | 0.80km/h | 0.80km/h |
| Raise / Lower Time | 3-5m/min | 3-5m/min | 3-5m/min |
| Power Source | 4*6V/203AH | 4*12V/140AH | 4*12V/140AH |
| Charger | 24V/30A | 24V/30A | 24V/30A |
| Gradeability | 25% | 25% | 25% |
| Maximum Working Slope | 1.5°/3° | 1.5°/3° | 1.5°/3° |
| Tire Size | 380*127mm | 380*127mm | 380*127mm |
| Weight | 2950kg | 3900kg | 4200kg |
Standard Configuration
●Proportional Control
●Extension Platform
●Automatic Brake System
●Forklift Slot
●Emergency Stop Button both on Platform and Ground
●Fault Diagnosis System
●Automatic Pothole Protection
●Drivable at Full Height
●Tilting Protection Sensor
●Maintenance Supporting Bar
●Auxiliary Lowering Device
Optional Configuration
●Platform Working Light
●AC Power to Platform
●Overloading Sensor
●Wireless Tracking
●Anti-Collision Sensor
●Air Tube to Platform
●Flame Explosion-Proof System
●Heavy Duty Pipe Rack
