Product Description:
CHEN LIFT launched a range of fully oil-free machines ,comprising vertical mast lifts with no hydraulic oil
Standard Configuration：
*Oil Free
*CAN BUS Protocol
*Proportional Joystick Control
*Self-locking Gates
*Drivable at Full Heigh
*Non-Marking Tires
*Dual Wheel Automatic Braking
*Emergency Descent System
*Fault Diagnose System
*Tilt Alarm/Motion Alarm/Horn/Hour meter
*Extension Platform for both two sides
*Overloading sensor
*Forklift Slot
*Pothole Protection
Optional Configuration：
*AC Power to Platform
*Platform Working Light
*Platform Positioning Laser Lights
*Wireless Tracking
Specification:
| Model | MD390-2 |
| Max. Working Height-A | 6m |
| Max. Platform Height-B | 4m |
| Platform Size | 1.5*0.8m |
| Platform Extension | 0.4+0.4m |
| Stowed Length-C | 2.30m |
| Stowed Width-D | 0.8m |
| Stowed Height-E | 1.99m |
| Wheelbase | 1.11m |
| Ground Clearance | 0.07m |
| Lift Capacity | 230kg |
| Platform Extension Capacity | 120kg |
| Travel Speed（Stowed） | 4km/h |
| Travel Speed（Raised） | 0.8km/h |
| Turning Radius-Inside | 0.5m |
| Turning Radius-Outside | 1.2m |
| Up/Down Speed | 20S/25S |
| Gradeability | 25% |
| Maximum Working Slope（Side/Width） | 1.5°/3° |
| Tyre | 305*100 |
| Battery | 2*12V/100Ah |
| Charger | 24V30A |
| Total Weight | 920kg |

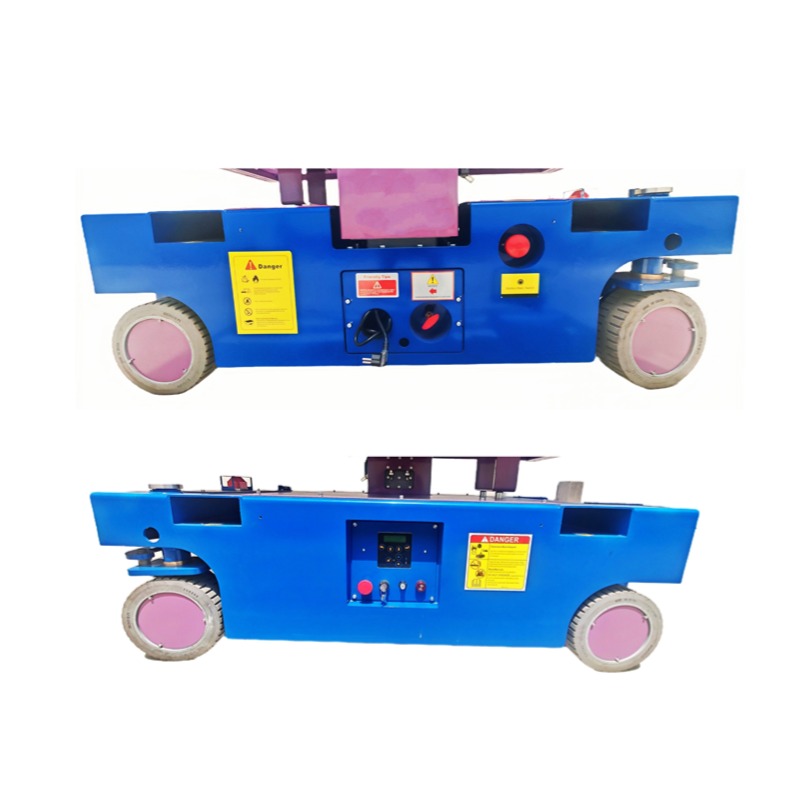

Parts display：
Company Introduction:
Chenlift (Suzhou) Machinery Co Ltd. is a suzhou-based world-wide supplier of lifting equipment with over 20 years of experience in the lifting industry, we have the knowledge to assist you in acquiring your next lifting equipment.
CHENLIFT proudly presents its groundbreaking fully electric, oil-free vertical lift series—the MD400. This innovative machine redefines efficiency and sustainability by replacing traditional hydraulic systems with advanced electric actuators, delivering superior performance and reliability.
